ZDZF-G high temperature adjustable valve, high temperature adjustable gate, three-time high temperature adjustable valve, three times air valve, motorized high temperature adjustable gate. It is matched with DKJ motorized hoister when using. It can automatically adjust and control the flowing media in high temperature pipes in chemical industry, generating plant, metallurgy, building material etc. It is characterized by big circulation capacity, nimble action, simple structure, convenient maintenance and strong temperature resistance.
Three times the wind temperature gate valve cover

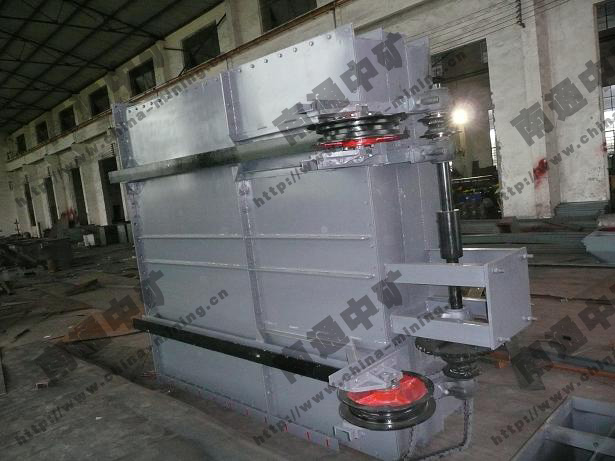

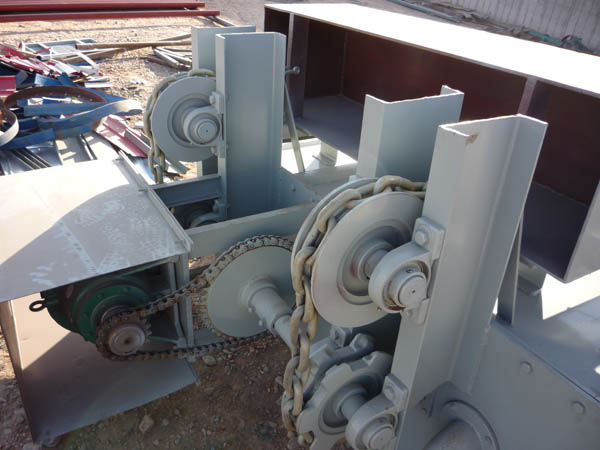

Three times the wind temperature gate upgrade system

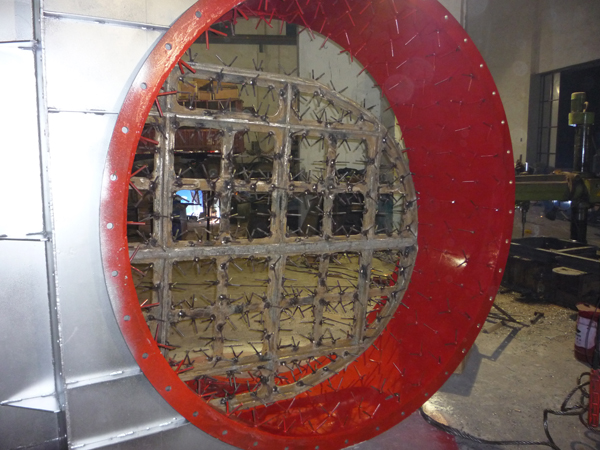

The valve body and disc Cr25Nr20Ti cast steel
Second, ZDZF - G high temperature regulation gate, high temperature regulating valves, high temperature regulator, three times the wind three times of wind valve, electrical adjusted high-temperature gate valves
Technical performance:
1. The maximum traction: 1000Kg
Roll Jane diameter: 500mm
Roll Jane length: 250
2. Input signal: 4-200mA
Basic error: + 2.5%
Supply voltage: 20V - 220 30V 50Hz
The shaft every turn time: 100 + - 20s
The shaft working Angle displacement: 0 ~ 90

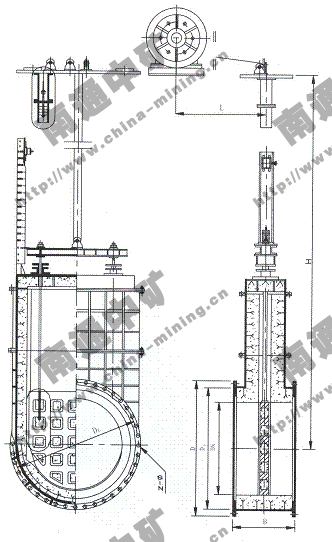

Three, figuration dimension (see chart)
